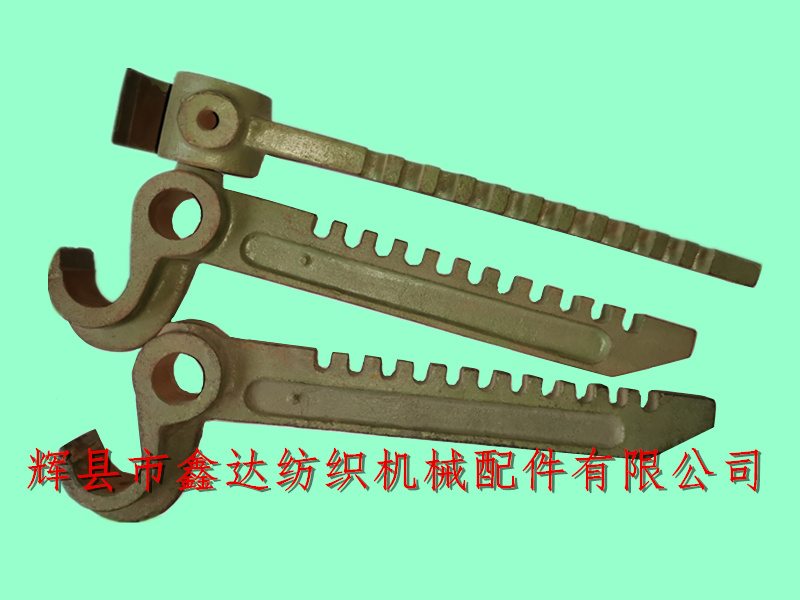

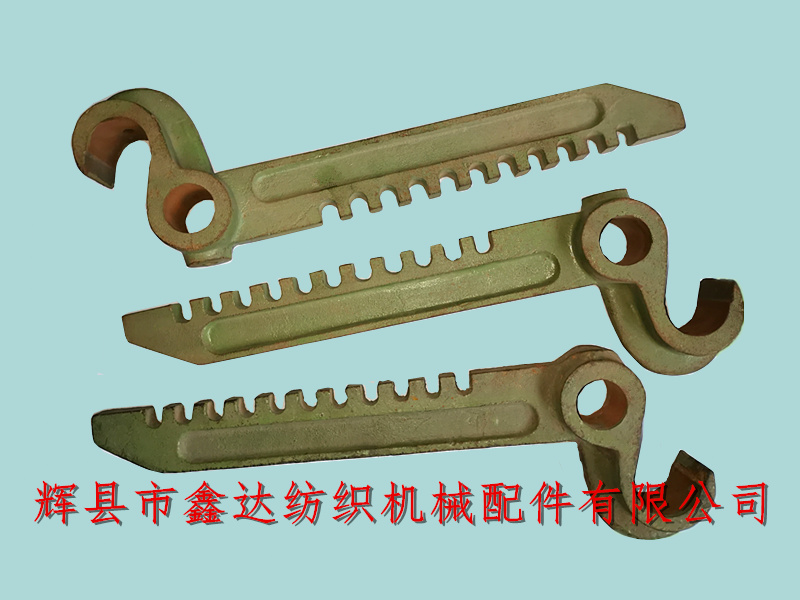

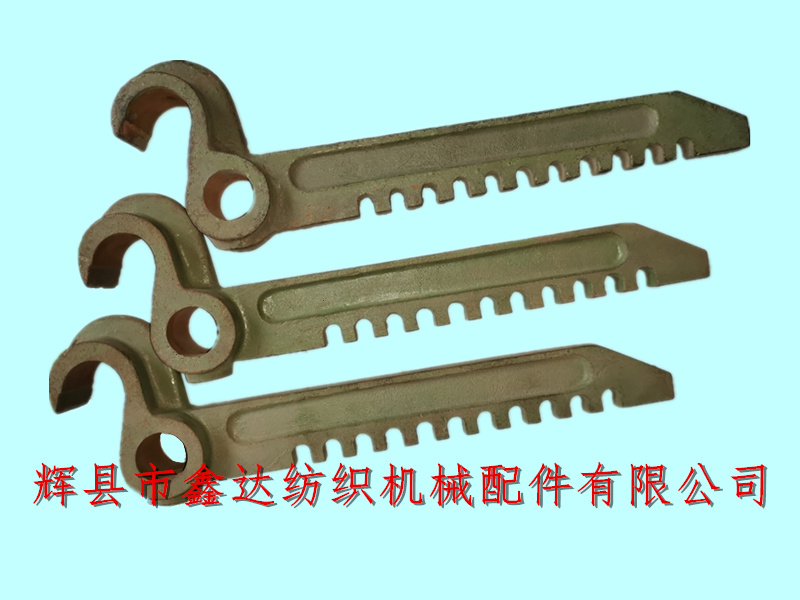

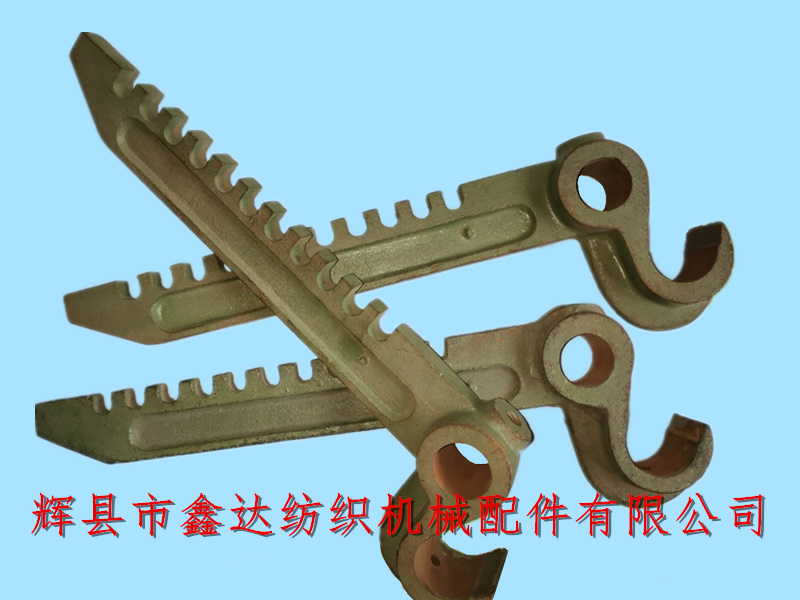

C14 tension weight bar accessories of 1511 loom are mainly used on 42 inch, 44 inch and 56 inch old shuttle loom with single beam.bracket for weight, The material of C14 tension weight bar is gray iron, with a total length of 36 cm. The diameter of shaft hole connecting with C29 of loom rear rocker is 28mm. There are 11 tooth-shaped clamping slots on it to fix the weight. Moving the suspension position of the weight bar can change the warp yarn on the rear rocker tension.
C28 Warp Beam Rod of loom is installed at the place of arc-shaped hook, and 3442 semicircular bearing is inlaid in it. It is used for up and down swing of back beam in weaving process to increase warp tension. The tension components of 1511 loom include C3 sector bar, C5 adjusting weight bar, C6 adjusting weight hammer, C13 plain weave motion bar, C17 tension weight hammer (single weight of 4kg), C29 rear bar, C28 chrome plated rear beam and other accessories. The tension control principle of parts of old shuttle loom is the same.
The parameters of textile bracket for weight: the thickness of shaft hole is 39mm, the thickness of M12 bolt is fixed, the thickness of teeth is 14mm, the spacing is 9mm, and the weight of single C14 heavy hammer is 1.55kg.bracket for weight,C14,loom bracket for weight.
When C3 tension sector bar is flush with the brake, the distance between the front end of C14 tension hammer bar and the upper plane of loom wallboard P1 and P2 is 108mm. One heavy hammer bar accessory is used at the rear of each loom, totally 2.
The packing of loom C14 is 5 pieces / string, no matter left or right hand, the order quantity is 10 pieces. If you need to purchase textile tension hammer bar, 1511 heavy hammer bar accessories, please contact our company for details!
