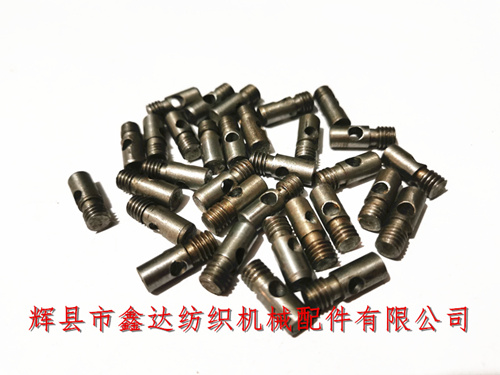

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided 1511/1515 loom accessories, Shuttle loom parts J37 control lever arm connecting core(connecting stud for limitting lever with nut). The total length of J37 control lever arm connecting core is 17mm, the optical axis diameter is 6mm, and the length is 10mm. The front part is an M6 screw (4.5mm in length), and the circular hole diameter is 3.7mm. The material of J37 is 45 # steel, which is connected to the J36 control lever arm. The quantity used for each loom is 1.
Connect the control rod, the control rod arm J36, and the connecting wire J39. When the switch handle is in the driving position, adjust the connecting bolt core J37 between the connecting arm of the control lever and the connecting iron wire, so that the distance between the top of the supporting fork steel wire J38 and the bottom of the weft fork handle is about 1.6 mm; When shutting down the vehicle, the supporting fork steel wire should lift the weft fork handle.
Then, push the switch handle to the driving position, manually move the weft fork to disengage its hook from the weft hammer, conduct inspection and correction, and make the weft fork kit reset flexibly. This is the operation process for installing the supporting fork steel wire J38 kit.
The J37 lever arm connecting core(connecting stud for limitting lever with nut) is suitable for use on automatic shuttle changing looms such as 1511, 1515, and GA615. The packaging of the J37 lever core is 100 pieces per bag, with a single weight of about 2.66 grams. If you need to purchase 1511 loom accessories, 1515 textile parts, and other products, please contact Mr. Yang of "Xinda Textile Accessories" for consultation!
