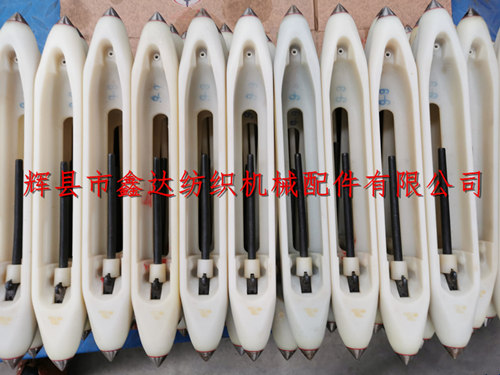

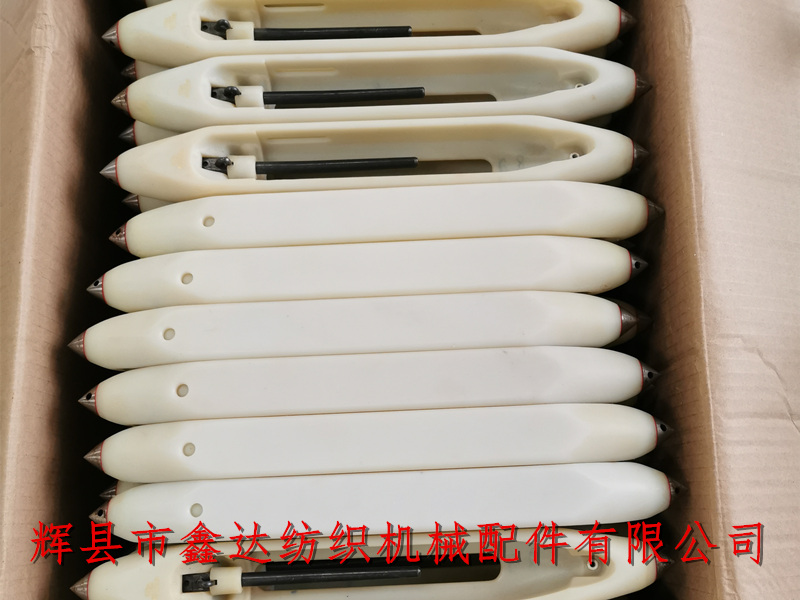

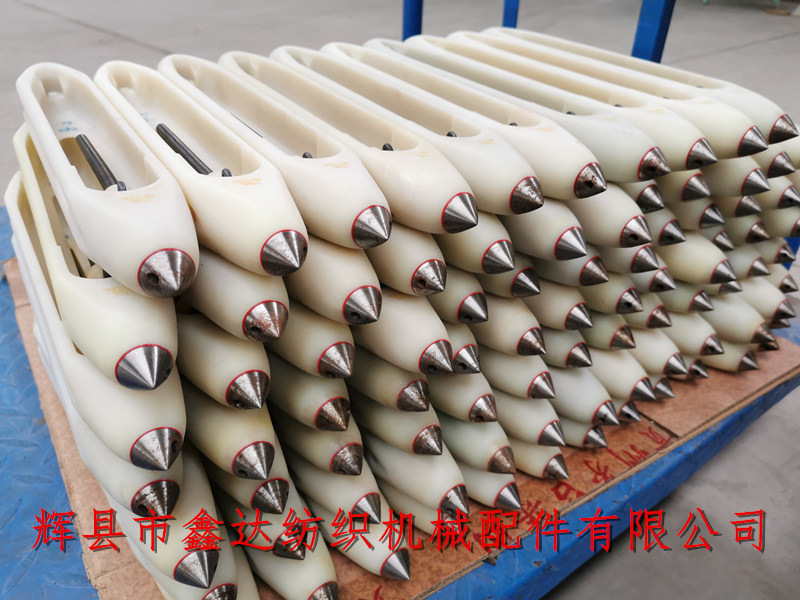

Huixian Xinda Textile machinery accessories provide 13.5-inch anti weft shrink nylon shuttle [double porcelain eyes shuttle]. The nylon shuttle is suitable for manual and automatic shuttle changing looms. The overall dimensions are 343mm long, 45mm wide at the bottom of the shuttle and 35mm high. Two porcelain eye leads are used to increase the resistance and reduce the weft shrinkage by changing the weft leading direction of the shuttle cavity for many times, Shuttle brand: Pegasus, made by injection molding.
The inner cavity of the shuttle has been appropriately increased compared with the ordinary nylon shuttle,The material is not PA66, and the material is soft. The center of gravity of the shuttle is stable and reasonable. The shuttle is divided into left-hand shuttle and right-hand shuttle (according to the direction of porcelain eye on the side of shuttle).
The nylon spindle used to fix the core of the shuttle is reinforced nylon material. When pulling out the core, it should be matched with the shuttle spring properly. The shuttle tip is installed in a detachable way, which is convenient for the maintenance of the later maintenance workers.
As the carrier of weft yarn, shuttle is used frequently, which requires high quality. It is suggested that angle inspection should be carried out for nylon shuttle used in automatic shuttle changing loom before loading. We can use nylon and nylon shuttle fabric with different weight, such as nylon, nylon, etc.
