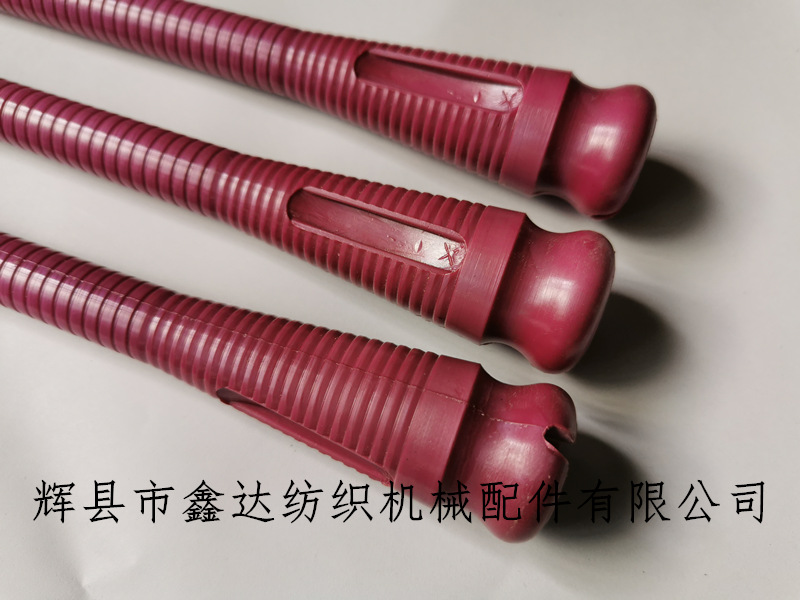

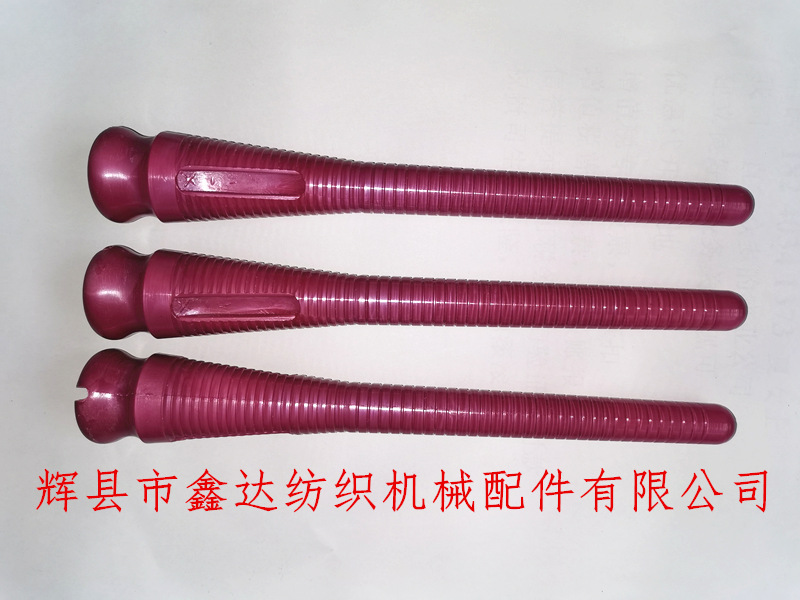

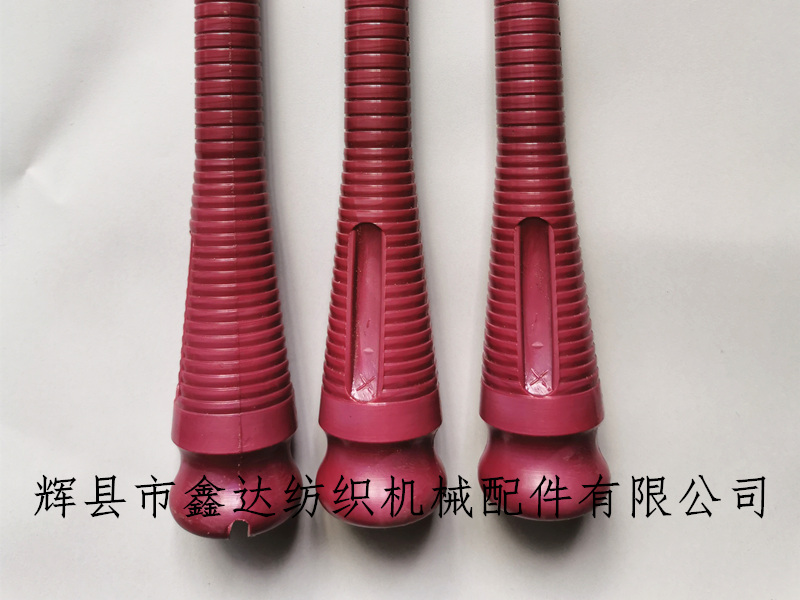

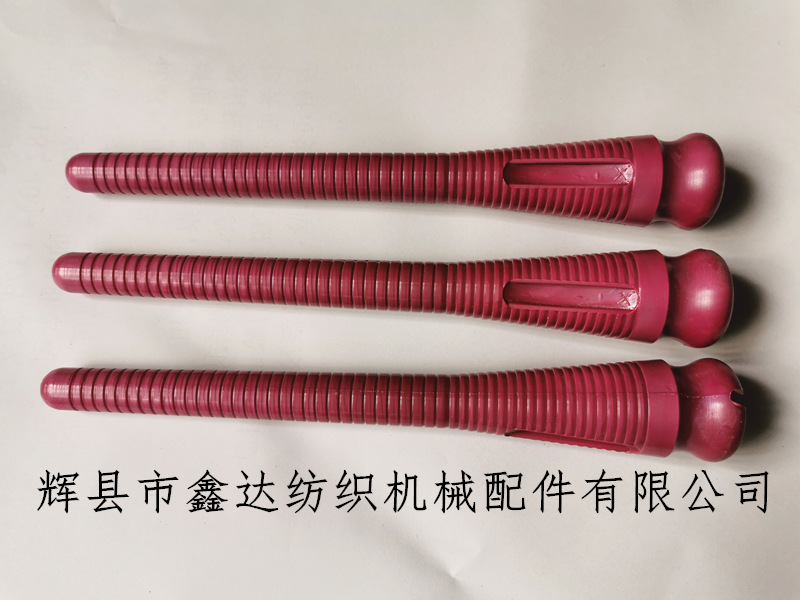

Our company provides 02 type circular arc weft tube with length of 180mm, model of 02, specification of 180mm, outer diameter of the bottom of the large end of the textile weft tube of 26.5mm, inner diameter of 16.5mm, width of the clamping groove of 3.5mm, two sides of the weft tube of impervious weft detection groove, and positioning sleeve near the top of the inner cavity. The diameter of the upper part of the weft tube (outer) is 11.5mm, and the inner hole is 7mm. The weft tube is professionally made by the weft tube manufacturer. The tube has a thick wall and a good luster. Professional weft carrier equipment wholesale manufacturers sell a variety of textile tubes, weft tubes, including a variety of different materials.
The outer surface of the weft tube has a groove, which is used to assist in tightening the weft. The product can generally be used in cotton, glass fiber, wool, silk and other weaving machinery, with the inner width of the weft detection groove of 5.8mm. Textile equipment - weft tube can also be used for manual weaving machine. The product is packaged as woven bag, 1000 pieces / bag, weighing about 28 kg, with an initial order of 1000 pieces. The default payment is to arrange production, and the goods will be delivered in 4-7 days.
Difference between type 01 and type 02 weft tubes: the positioning sleeve is at the height of the inner wall of the weft tube, type 01 is close to the bottom, and type 02 is close to the top of the weft tube. The spindles of g193, g203 winders and simple winders decide to use and select the weft tube according to the corresponding specifications.
The clamping groove of the weft tube is used for fixing in the shuttle cavity, and the clamping groove is clamped by the shuttle core to prevent the weft tube from rotating in the shuttle cavity when the shuttle is moving, thus causing the weft breaking phenomenon. Compared with the straight neck bobbin, the circular arc bobbin has a longer service life. The bobbin and the shuttle's bobbin are closely connected. When the shuttle is put in, the vibration amplitude is small and the wear is less, so the service life can be extended,Circular Weft Tube Type 02,180mm Long.
Weft tube manufacturer, circular arc weft tube wholesale, 02 weft tube processing factory - Huixian Xinda Textile Machinery Accessories Co., Ltd. welcome your presence and consultation, honest operation, pragmatic development!
