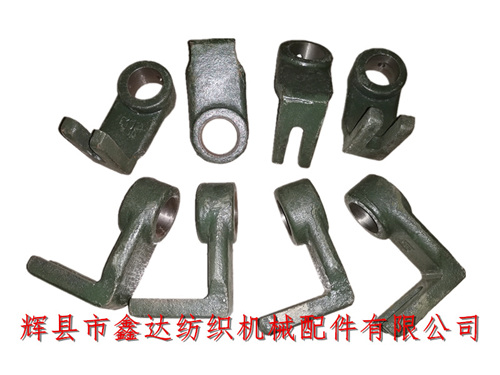

Our company provides a shuttle loom accessory L31 change gear core foot, which is made of pig iron HT15-33, the diameter of the inner hole is 28mm, the thickness is 25mm, there is a refueling hole above, the inner length of the core foot is 52mm, the width of the middle chute is 10.5-11mm, and the thickness is 12mm. It is used together with the hanging foot of l30y pinion, and L00-4 core pinion is installed in the middle hole.
During the installation of the take-up device part L31 of 1511, 1515 and GA615 looms, it should be noted that the hole fixing the core pinion is on the same center line as the L30 hole, and the L00-4 core pinion rotates freely and smoothly. It is critical to keep the vertical distance between the hook and L7 sawtooth and check the relative position of the three hooks of the coiling device.
The height, width and length of L31 core feet of shuttle loom parts are 92mm, 44mm and 64mm. The weight of a single L31 core foot is about 0.38kg. There are 10 in each string. L31 is not divided into left and right hands, but about L30 minutes.
If textile mills and weaving mills need to buy shuttle textile parts, 1515 change gear, 1511 core foot, GA615 loom accessories and other products, please contact Mr. Yang of our company for consultation. We can provide specific and detailed parameters of change gear core foot.
