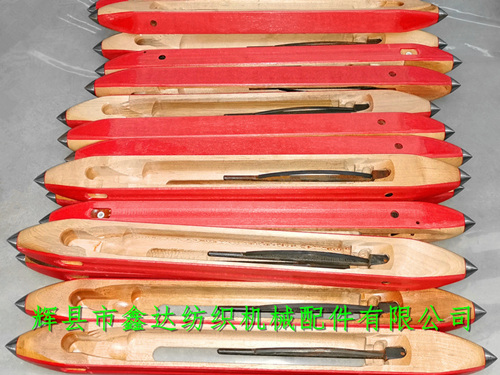

The loom shuttle and 415mm loom red steel paper wooden shuttle provided by Huixian Xinda Textile Machinery Accessories Co., Ltd. belong to textile wood accessories or wood products.Loom Wooden Shuttle Textile Shuttle Factory, The textile shuttle manufacturer has more than 30 years of wood shuttle production technology and experience. The dimensions of this double side bonded red steel paper wooden shuttle are: the total length is 415mm (including the shuttle tip), the outer width of the bottom is 32.2mm, the outer width of the upper part is 38.5mm, and the angle between the contact surface with the shuttle box back and the shuttle bottom is 93.5 ° (the commonly used shuttle angle in China is 86.5 °), that is, the upper is wide and the lower is narrow. The inner cavity length of this loom shuttle is 266mm, the inner width is 27mm, the total length of the bobbin with spring is 170mm, and the inner width of the weft tube groove is 16mm.
The front part of the 415mm loom shuttle uses a porcelain eye with an outer diameter of 6.7mm (the inner hole diameter is 3mm), the total height of the shuttle body is 27.5mm (the outgoing line side), the thickness of one side close to the shuttle box back plate is 6mm, the thickness of the other side is 5.5mm, and the thickness of one side red steel paper (a mixture mainly composed of pulp and cotton) is about 1.5-1.8mm.Textile Wooden Shuttle Parts-Wood Shuttle,Textile Shuttle Factory,Wooden Shuttle.
Textile wood accessories broadly refer to wood products used for textile machinery and equipment. However, according to the material technology, they can be divided into ordinary wood, laminated wood and whole compressed wood. The materials used for manufacturing textile wood shuttles are mainly whole compressed wood. The manufacturer of weaving machine shuttles can not only improve the weight of the shuttles, but also prevent the shuttles from deforming when they are stored for a long time (the wood is compressed by high temperature to remove moisture).
As an important shuttle carrier, shuttle, wood shuttle, loom shuttle and textile shuttle have strict requirements in all aspects, such as weight, angle of four sides, shuttle tip size and center of gravity position of shuttle body. If the product quality of shuttle manufacturer is not up to standard, there will be many dangerous situations in the flight process of shuttle, or the service life of shuttle and its counterpart will be affected.
The package of 415mm export-oriented textile shuttles is cartons, 70 pieces per box, and the weight of a single one is about 0.32kg. If you need to purchase red steel paper shuttles, weaving machine shuttles, wood shuttles, shuttle manufacturers, wooden shuttle textile shuttles and other products, please contact Mr. Yang of Xinda Textile Accessories Co., Ltd. for consultation. We have been producing and processing according to the samples provided by customers for a long time. By default, the minimum order of shuttles of the same specification is 300, The delivery period is 50-60 days (the production cycle of red steel paper wooden shuttle is slightly longer).
