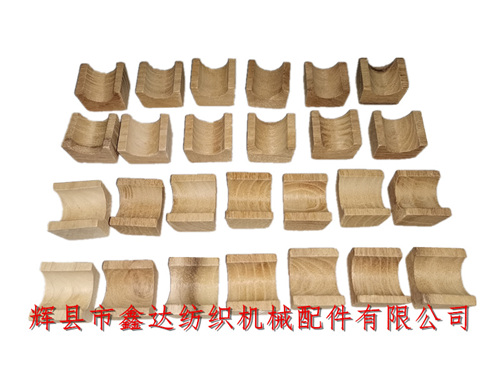

Huixian Xinda Textile machinery accessories provides textile wood parts loom Q20 winding shaft / winding roller wood bearing. Q20 is installed in the groove of the winding roller support foot L16 or 5102 of the loom. The shape of the winding roller wood bearing Q20 is trapezoidal, the outer width of the upper plane is 32.2mm, the length is 28.5mm, and the height is 21.6mm. The material of the loom bearing Q20 is oak wood, and the diameter of the semicircle is 21.5mm. Two pieces are used for each loom (1511 and 1515).
Textile wood parts include a variety of accessories: lifting heald shaft wood bearing Q21, control wood q26, pricking roller plug Q24, front convex plate bottom board Q22, loom reed cap Q9 (3200-1), reed clamp triangular wood combination (3200-3), shuttle board 3310 or Q2, shuttle box back plate 3303 * 3304, shuttle box lifting back plate 3312 * Q7, 2106 * Q7, control wood 3311 and other dozens of products.
The wooden accessories of textile shuttle loom have the characteristics of good wear resistance and hard texture. Q20 rubs with the shaft head of the winding shaft of the loom, which is used to stabilize the normal rotation of the winding roller of 1511, 1515, GA615 and other looms. The packaging of textile wood-Q20 cloth reel shaft bearing is: 25 pieces per package, weighing about 0.28kg.
Xinda Textile machinery accessories is a professional supplier of shuttle textile accessories, which can provide thousands of shuttle loom parts, including loom wood parts, hardware parts, iron parts, steel parts, textile leather parts, textile porcelain parts, plastic nylon parts and other categories. The types are complete, and the textile machinery products with special specifications can be customized according to the requirements of customers.
Xinda rolling cloth roller wood bearing is generally immersed in oil to reduce friction resistance and enhance its wear resistance. If textile manufacturers, textile enterprises and trading companies need to purchase textile wood parts, cloth roll bearings, cloth roll shafts and other products, please contact Mr. Yang of our company for consultation.
