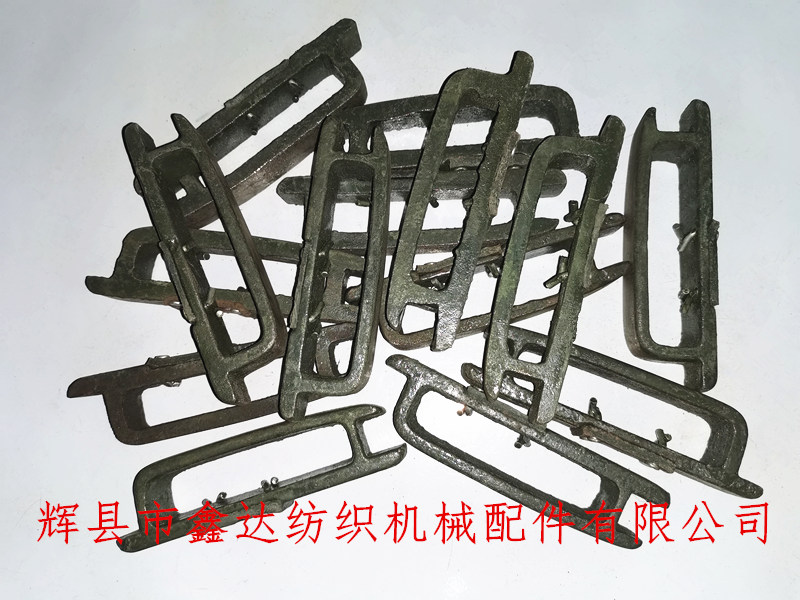

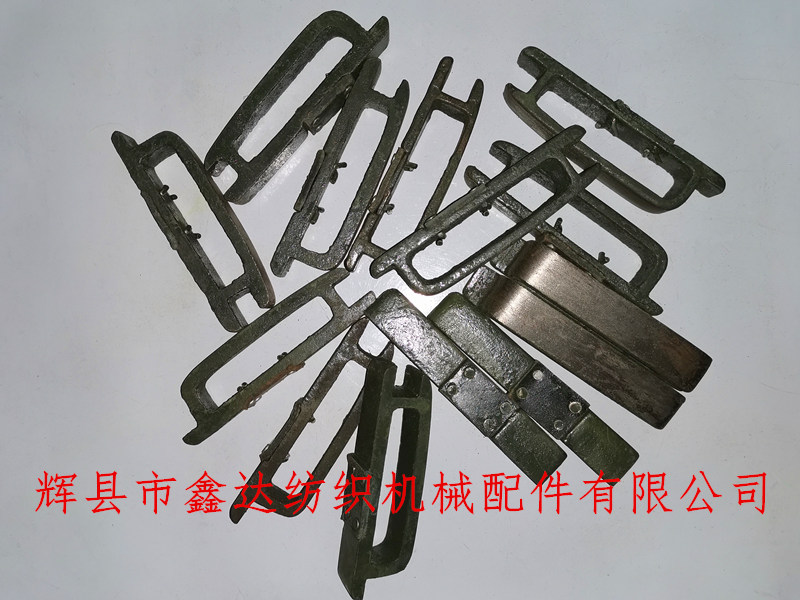

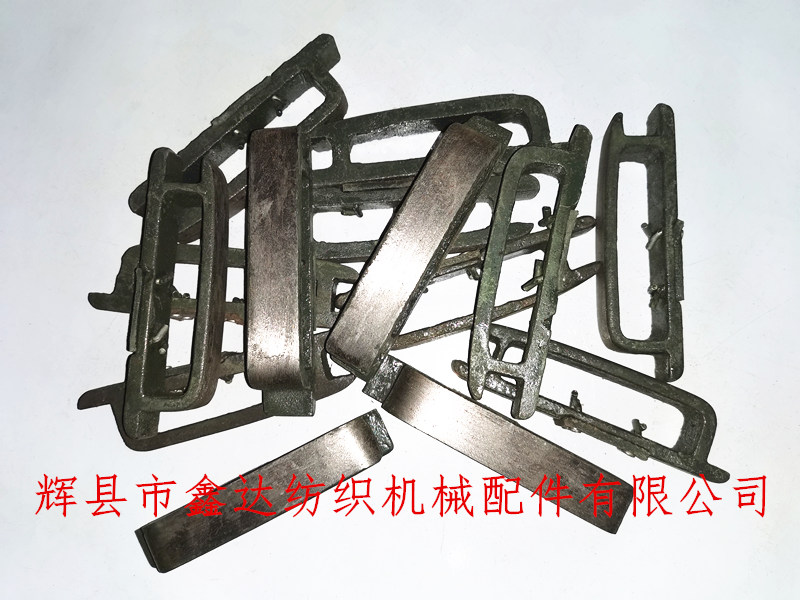

Huixian Xinda Textile accessories provides the brake shuttle iron (switch side) accessories of loom k00-6 all the year round. The product is composed of R53 and K95(Shuttle Swell,Handle Side). The cowhide pad R53 is not divided into about and K95 is divided according to q3xq4 and 3303x3304 shuttle box backboards, which are respectively installed on the switch side of the left and right mobile phones. Some of the modified shuttle machines have the same backboards used on both sides (not lifting the backbones), making shuttle One on the left and one on the right is required for iron installation.
R53 is equipped with 4 aluminum wires or rivets to fix in the groove of shuttle iron. The front end of K53 plate spring presses the rectangular R53 cowhide pad to reduce the movement noise of shuttle iron and shuttle box back plate during shuttle making.
The processing surface of the shuttle iron (Shuttle Swell,Handle Side) has a slope, one side is thick, the other side is thin. Brake Shuttle Iron Swell, The installation of the loom accessories generally needs to be confirmed according to the shuttle feeding direction and the back plate 86.5 °.
Weaving machine accessories, shuttle iron, k00-6-applicable to 1511, 1515, GA615, 1515k and other door frames of weaving machine, which are common accessories, necessary accessories for reed frame wood installation and shuttle box repair. For details, please contact our company for more information.
