Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides Small End-loop Big Mail-eye Steel Wire Heald, 380*0.9mm small heald wire healds (flanging healds), which are composed of two steel wires with a diameter of 0.9mm welded side by side, with a total length of 380mm. The dimensions of Small End-loop at both ends are: 3.2mm wide inside and 7.5mm； long inside; The inner width of the Mail-eye is 5mm, the inner length is 8.8mm(420R circle), the outer width is 9mm, and the thickness is 1.3mm (the overall thickness of the Mail-eye is 1.6mm). The heald ears (End-loop) on both sides of the 0.9mm*380mm small heald ear wire heald form a 45° angle with the middle heald eye.

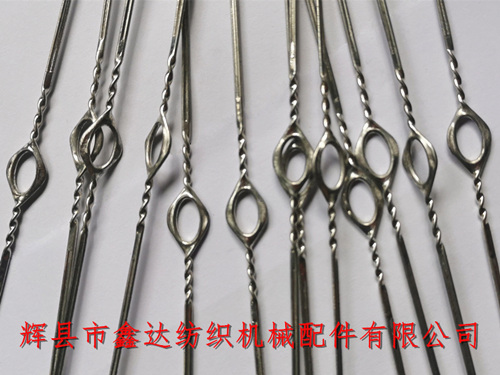

The above picture shows the brown eyes of 380 flanging heddle steel wire healds, and the sliding wire ring is fixed in the middle by soldering. Small End-loop Big Mail-eye Steel Wire Heald, The heddle is located in the middle of the steel wire heald, and the number of each heddle is 250, and the minimum order quantity is 60,000pcs.
On the right side of the above picture is a small heald ear(end-loop), which is smaller than the general 13*5mm, so it is called a small heald ear steel wire heald, and the thickness of two side-by-side steel wires on the side of the heald ear is 1.8 mm. Comparatively speaking, the friction resistance of the steel wire heald with integral tin coating is smaller than that of the nylon coated heald, and the use effect is smoother. The expression of this steel wire heald specification is: 380*0.9*420R or 15"*20G*420R (English calculation method).
The specifications and types of steel wire healds are mainly distinguished by steel wire diameter, heald eye size, effective length (inner clear length) and heald ear shape. The main function of healds is to stratify warp yarns in the weaving process, thus forming a shed, which is convenient for weft carriers to complete weft insertion.
Textile processing factories, weaving workshops and trade groups in various cities can contact Mr. Yang of our company for advice if they need to purchase small end-loop wire healds (Grooved healds) of 380*0.9mm, or know other wire healds models,large mail-eye healds specifications, 380 healds parameters, heald technology and heald ear details.
