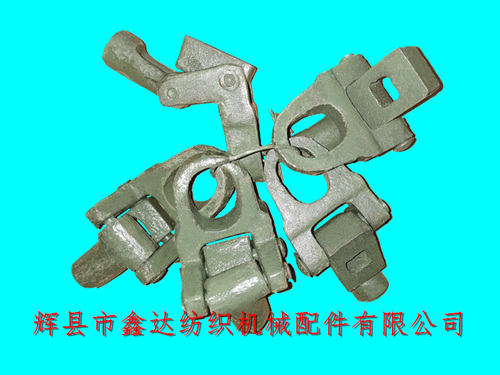

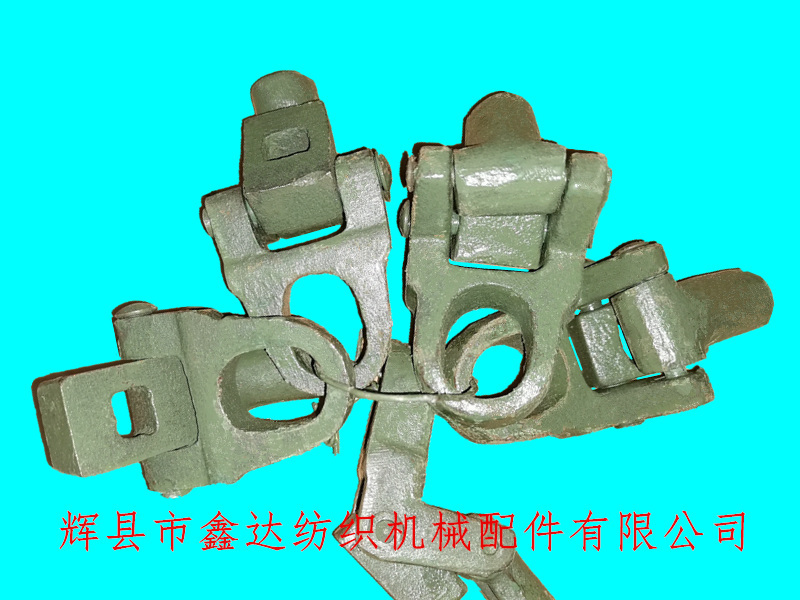

Huixian Xinda Textile Machinery Parts Co., Ltd. provides B00-3 Loose Joint B29,B30,B39 Assembly, B00-3 loose warp joint B29, B30, B39, and B60 combination parts. The pull rod adjustment joint B00-3 of the weaving machine's warp feeding mechanism is composed of a B29T Supporter for T shape piece (joint angle ruler bracket), a B30 T shape piece for connecting rod of foot lever (foot pedal connecting rod T joint), a B39 Bracket for T shape piece supporter(angle ruler bracket foot), and a B60 pin shaft combination. It is fixed on the P1 (1511 type) or 4301 (1515 type) Side Frame R.H (wall panel) of the weaving Loom machine.
The quantity used for each weaving machine is 1 set, and the installation position is located below the outer side of the machine shuttle compartment wall panel. The B12 friction serrated wheel shaft is inserted into the middle of the oval hole, and the width of the main support B29 is 68 millimeters.
The M8 screw hole at the front of the B30T joint is used to fix the B00-4 (1511 type) or 3400-4 (1515 type) foot pedal connecting rod. B00-3 Loose Joint B29,B30,B39 Assembly, The function of this assembly is to assist in the transmission of the elastic warp fabric surface.
Number of bundles for the product: 10 pieces per string, made of gray pig iron and riveted together as a whole; If you need to purchase textile joints, loose warp joints, woven fabric machine accessories, warp delivery accessories and other products, please contact Mr. Yang from our company for consultation. If you need to know other detailed parameters of the B00-3 loose joint B29, B30, B39, and B60 assemblies, you can also contact our company.
