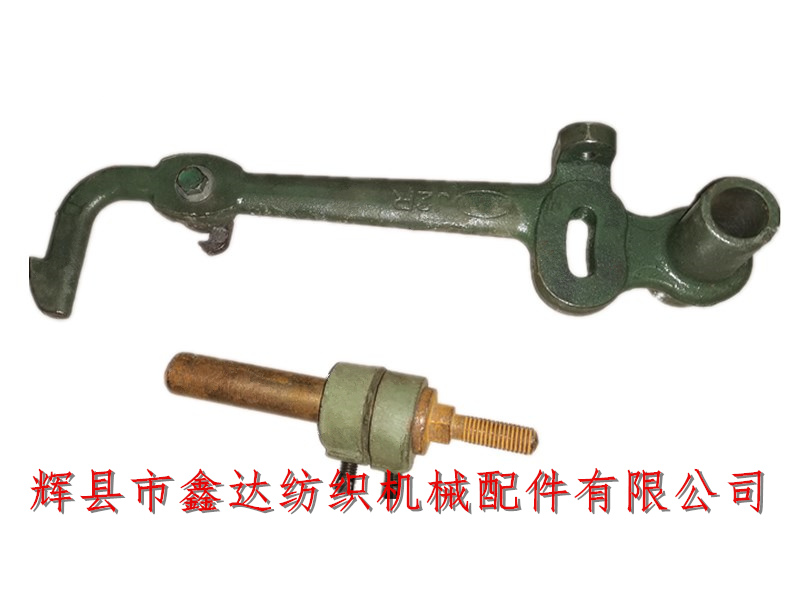

Our company provides loom parts J2 weft fork hook and spindle holder. They can be used in the old shuttle loom with wide width and narrow width. The accessories of J2 weft fork hook, screw core for hook bar, sliding hoop of weft fork spindle bar, support foot of weft fork spindle bar and weft fork leg can assist the loom to complete the shuttle changing action. They are small pieces of pig iron sand turning. The length of J2 weft fork hook bar is 29.2 cm and the diameter of shaft hole is 50 mm. It is connected with J00-1 of loom. J28 cross spindle hook is installed in the guide groove of J2.

During the installation of j00-3 bell arm assembly, j00-5 connecting wire, J4 sleeve supporting foot, J9 probe support, J22 cross spindle and other products, attention should be paid to: shuttle is on the switch side, weft cam E4 is forward, the clearance between its surface and cross spindle hook J28 is 0.2mm, J22 is required to move flexibly, the spring elasticity is moderate, the lateral movement tolerance is 0.4mm, and the wear is less than 0.4mm.

Our company has a complete range of ga611 warp protection accessories, shuttle change weft detection device, weft insertion buffer parts and other products. We provide GA615 loom accessories and textile machinery accessories processing, and sell various kinds of shuttle textile accessories, dobby faucet accessories, multi shuttle loom parts, textile machinery equipment, etc. the J2 weft fork hook and spindle support leg of loom parts are improved on the basis of 1515 loom And then.

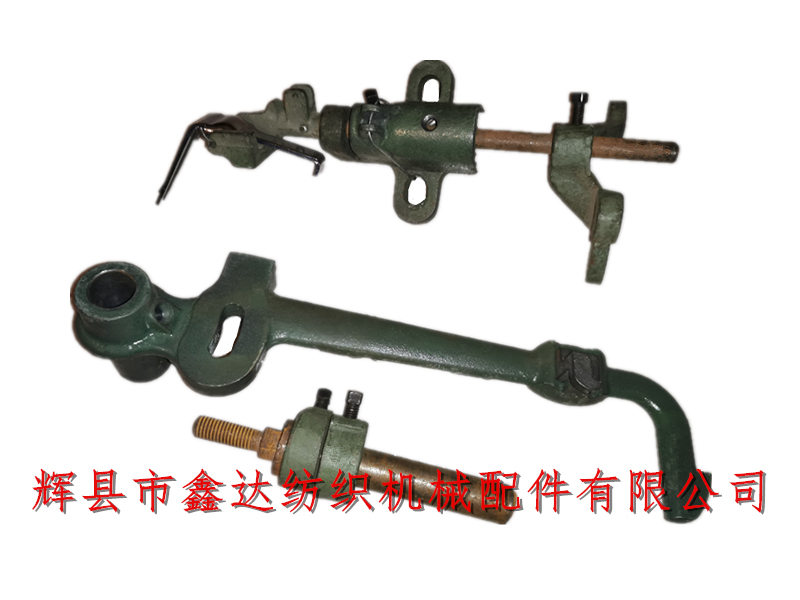

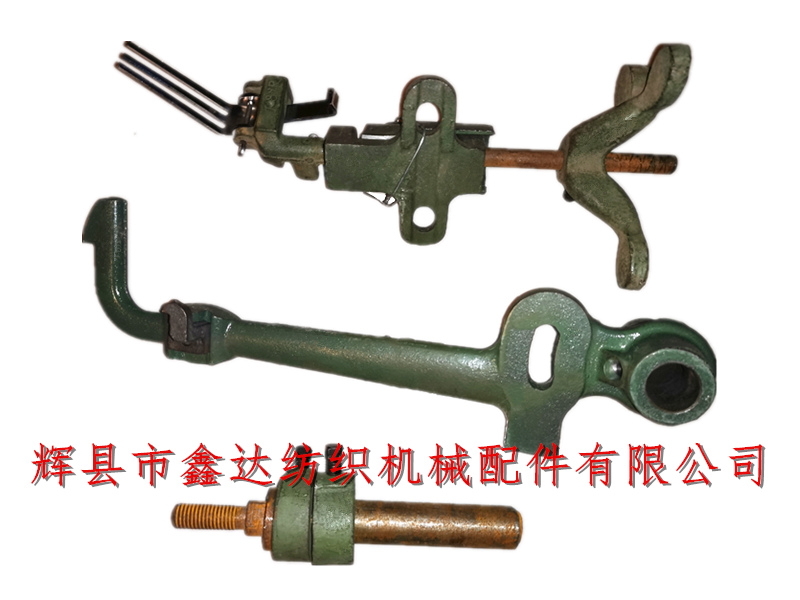

There are two retaining rings on the outside of the weft fork hook and spindle support leg of the shuttle loom part J2, as shown in the figure above. Purchase loom parts - weft fork, textile parts, gantry equipment and other products, please contact our company for consultation!
