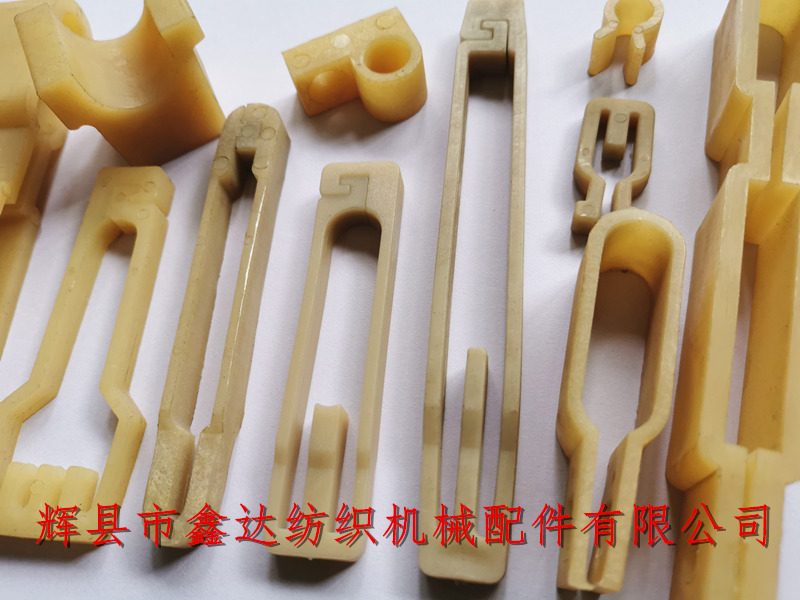

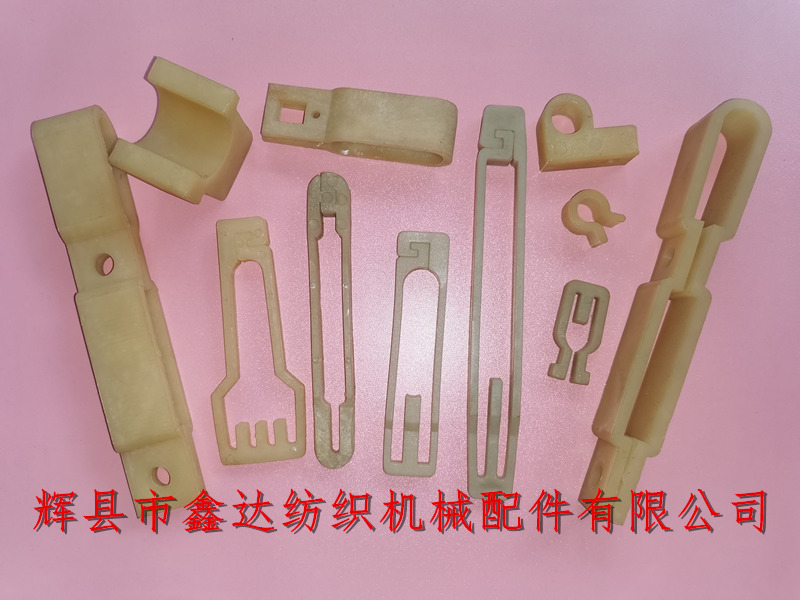

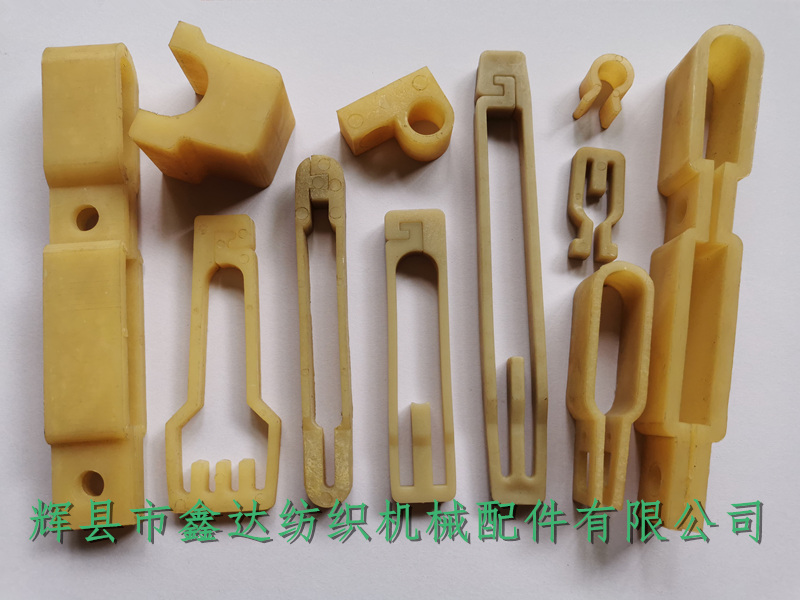

Huixian Xinda Textile machinery accessories provide all kinds of heald clip, nylon heald clip, Loom heald clip nylon accessories, single row heald wire clip, double row nylon heald card, step plate rapier machine heald card nylon accessories, textile heald frame clip and other products are used in different types and specifications of looms. Heald clips of different lengths are designed according to the width of heald frame beam. Loom heald frame can be divided into seamless steel pipe heald frame, wood heald frame and aluminum alloy heald frame according to different materials.
The specifications of heald wire clip from left to right are: four rows, single row, double row, extended double row, small double row. The first parameter on the left is 95mm in length, 72mm in inner length, 35mm in outer width and 8mm in thickness; the second dimension on the left is 114mm in length, 93mm in inner length, 16mm in outer width and 10mm in thickness;

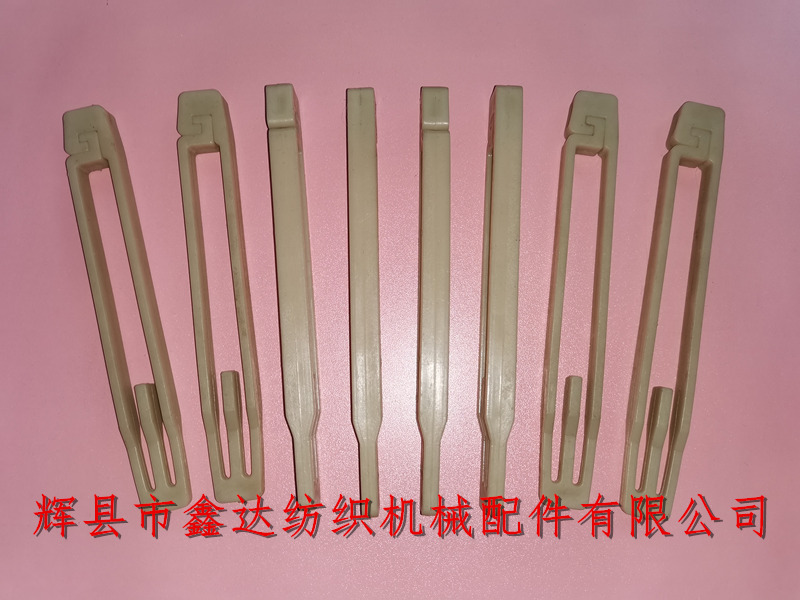

The third left double row heald clip is commonly used on Cotton Looms, with an overall length of 94mm, an inner length of 75mm, an outer width of 20mm, and a thickness of 8.4mm; the fourth on the left is a heddle wire clamp of treadmill rapier machine, with an overall length of 152mm, an inner length of 122mm, an outer width of 19mm and a thickness of 10mm; the fifth one on the left is a double row heald clip, which is commonly used on the rapier loom, with a total length of 39mm, an inner length of 22mm, a width of 18mm and a thickness of 7.5mm.
Left first, left second and left third are used on shuttle looms. They are selected according to the density of heald wires arranged on a single heald frame. If the density is high, four rows of heald clips can be selected and four heald bars (heald strips, healds) can be hung to reduce the density of wire healds and ensure the smooth opening of warp yarns!
If you want to purchase heald clip, nylon heald clip, loom heald card, nylon accessories, please contact Mr. Yang of Xinda Textile accessories for details! Special specifications and models of heald wire clip products support sample batch customization!
