Huixian Xinda Textile Machinery Accessories Co., Ltd. provides customization and processing services for the 98mm small shuttle of the wooden shuttle flat shuttle webbing machine.Ribbon Shuttle,Webbing Machine,Webbing Machine Shuttle,Wooden Shuttle, The overall dimensions (parameters) of this small shuttle: the total length is 9.8 cm, the width on one side is 33 mm, the width on the other side is 32.5 mm, and there is an overall inclination angle. The height of the back of the shuttle of the webbing machine is 21 mm, the height of the front bow surface is 19 mm, and the shuttle shell is made of compressed wood, Webbing machinery and equipment suitable for refitting flat loom.
Shuttles with shuttle belt loom can also be processed and customized according to the samples provided by customers. The minimum order quantity of the same specification and size is 100. Under normal circumstances, the delivery time is 30-45 days. Because the wood shuttle processing process is made by combining machinery and manual, with more than 60 processes, all wood shuttle products do not support proofing, please understand.
The width of the inner cavity of the flat and webbing shuttle is 2.6cm, the length of the upper part of the inner cavity is 53mm, the inner length of the bottom is 51.5mm, the diameter of the middle thread shaft is 1.7mm, the length of the matching wooden thread shaft is 5cm, the diameter of both ends is 18.5mm, and the middle diameter of the thread shaft is 6mm.

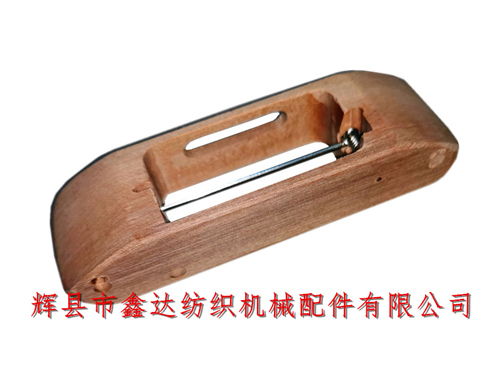

Packing method of loom shuttle: carton, 100 pieces per box, weighing about 5kg. In the figure above, the oval groove is the two screw holes (small holes) for fixing the front bow, the two inclined holes (large holes) on the inner side are for fixing the glass ring and tension spring, and the middle chute is the reserved position for weft leading out.
The full picture of wooden shuttle, flat shuttle loom shuttle and 98mm small Ribbon shuttle is shown above. If you need to purchase small loom shuttle, flat shuttle loom shuttle transformed from old shuttle loom and other products, please contact manager Yang of Xinda Textile machinery accessories for ordering details.
