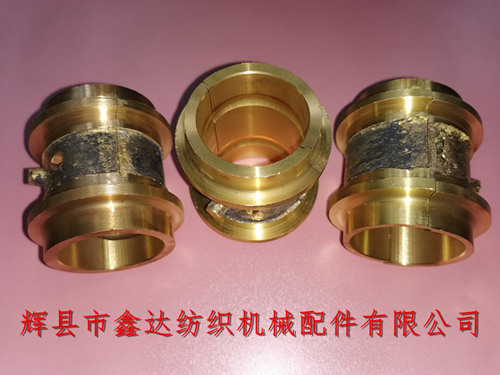

Huixian Xinda Textile machinery accessories always provide 1511 model 44 inch old cloth machine handle copper sleeve accessories. Textile machine handle bearing K77x78 is generally divided into copper and nylon according to the material. The inner hole diameter of handle copper sleeve is 38mm, the height is 61.5mm, and the outer edge diameter is 57mm. 44 copper sleeve K77 and K78 are two semicircles, which are combined to form handle copper sleeve.
There are oil holes and raised pins in the middle of the handle bearing bush (copper sleeve), which are installed on the 44 inch, 42 inch, 52 Inch, 54 inch and 56 inch old single beam loom (1511). Each loom uses one set, which is located in the middle of the bending shaft crank of the loom.
Loom copper sleeve plays an important role in the operation of the textile machine, which is mainly used to reduce the wear of the smooth surface of the loom crankshaft. Because the loom is divided into metric system and English system, they are the product of different stages of design in China and the West. The metric system is generally even, and the English system is generally odd, such as the diameter of the inner hole: metric 42mm, English 41.5mm.
The British loom uses K77x78B (straight cylinder) handle copper sleeve, while the metric loom uses K77x78T (with outer edge). K77x78 is packed in cartons with 40 sets in each case. As the textile copper sleeve is continuously rubbed during the operation of the loom, it is a vulnerable part and needs to be checked regularly for lack of oil.
There are two oil lines in the inner cavity of the handle copper sleeve of 1511 loom. The weight of a single K77 * 78 is about 0.35kg. Domestic and foreign textile enterprises, trading companies, if you need to buy loom hand, hand copper sleeve, 44 copper sleeve, textile copper sleeve and other products, please contact Mr. Yang of our company for consultation.
