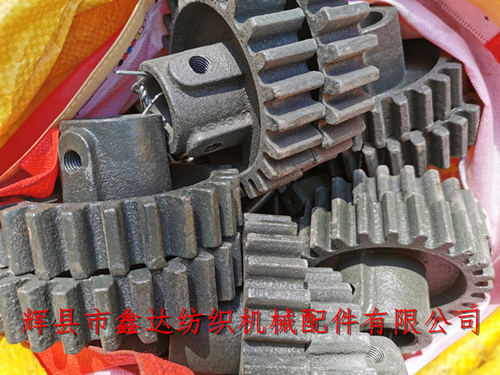

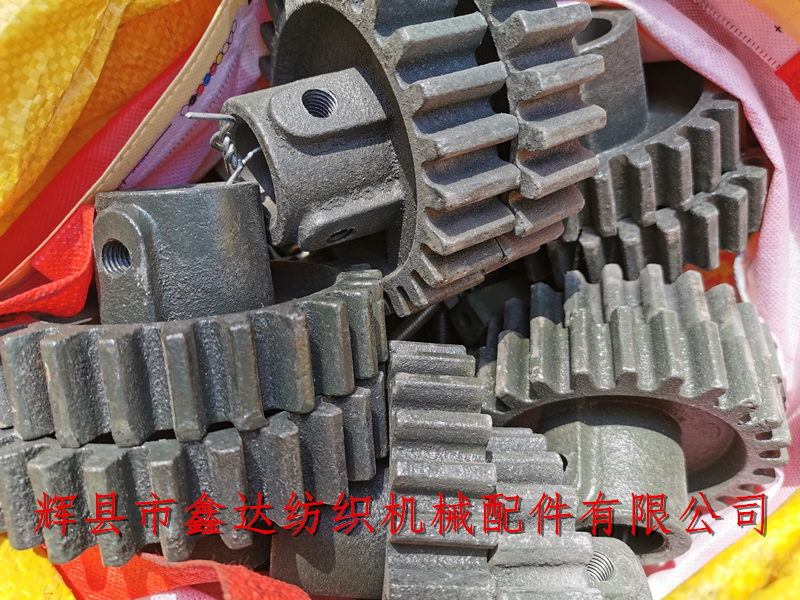

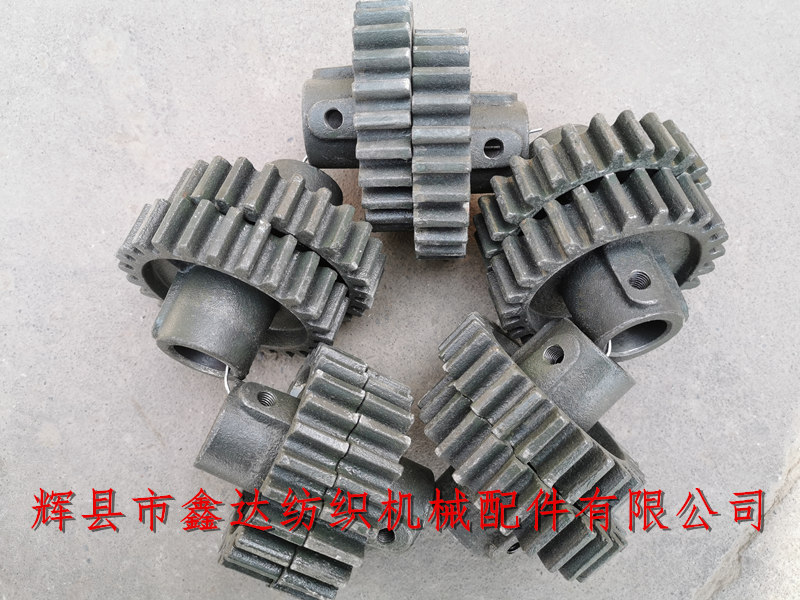

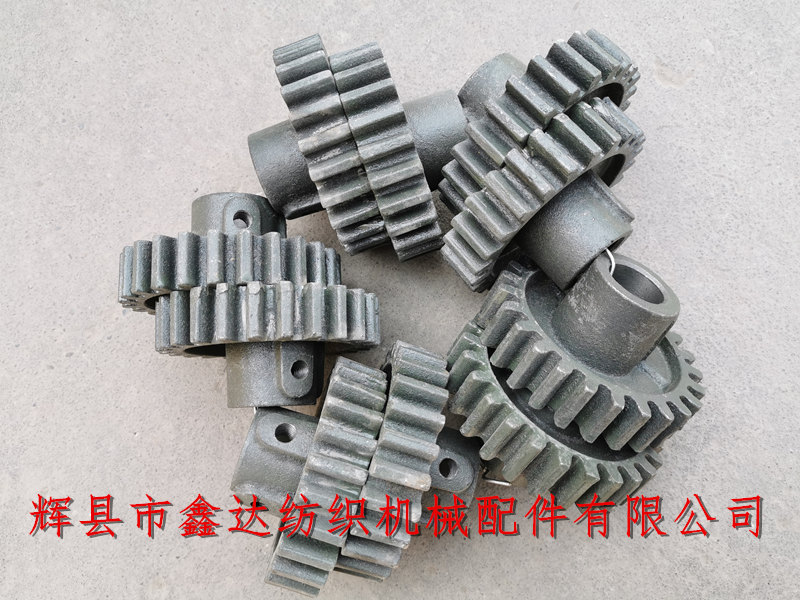

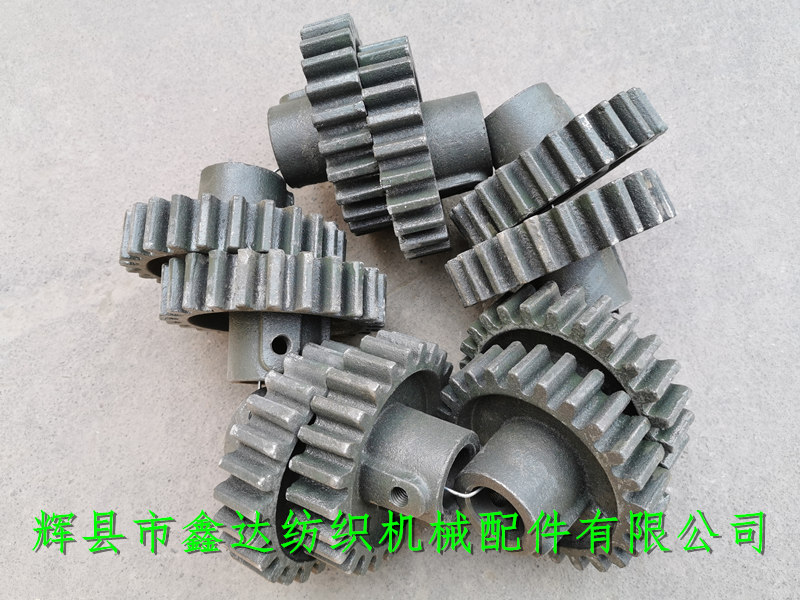

The 25 teeth of the drive gear of Xinda 4122 warp shaft disc are used together with the diameter of 55cm. It can be used to refit the old shuttle loom with 44 inch, 56 inch and 75 inch door width. The number of teeth of 3429 gear is 25 teeth. The inner hole of let off gear is 28mm, the diameter pitch is 6, and the modulus is 4.23. The fixing bolt hole of the warp shaft disc gear of textile machinery accessories is M10, and the material is HT15-33 gray pig iron We can provide textile spur gear, weaving transmission gear, shuttle helical gear, let off bevel gear and other products.
There is no keyway in the inner hole of the let off shaft gear 3429 of the loom. It is fixed on the let off shaft 3427 by two square head bolts with 10 in each string, and one let off gear is used for each loom.25 Teeth Of Gears For Textile Warp Discs,Textile Warp Discs, warp shaft disc gear, let off gear.
The outer diameter of Xinda 3429 let off gear is 11.4 cm, the height is 54 mm, and the weight of a single gear is 0.8 kg. The speed of transmission gear of textile shuttle loom is slow, and the wear degree of teeth should be checked regularly during the active stress process.
The disc diameter of 1511 loom is 49.5cm (small disc), and the corresponding number of teeth of let off shaft gear is 23, which is the same as 3429 in shape and modulus.
If you want to buy old textile machinery accessories, loom 25 teeth warp shaft, disc drive gear, textile let off gear and other products, you can contact our company for details, we will provide services for you wholeheartedly!
