Huixian Xinda Textile Machinery Parts Co., Ltd. provides external warp delivery accessories for GA615 looms, such as SJ-50 cam motion shafts (loom camshafts). The total length of the SJ50 camshaft is 170mm, and the length of the M16 thread at the tail is 25mm (total length is 30mm); The main diameter of the middle position axis is 24mm and the length is 100mm; The spacing between the front hexagonal nut and the plane is 34mm, and the thread is M16. The SJ-50 camshaft is connected to the SJ52 swinging rod and SJ51 connecting pin for use.
The cam motion components and surrounding accessories are the main structure of the external warp let-off device, which plays a crucial role in the normal operation of the let-off device. The SJ external warp let-off device is divided into left and right mobile phones (for shuttle looms of models 1515 and GA615).Cam Shaft,Motion Shaft,Shuttle Loom Parts.

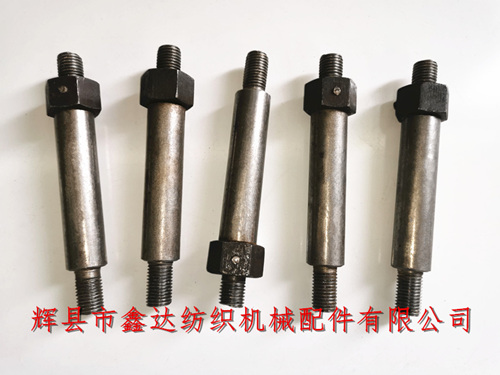

The main body of the SJ-50 camshaft is processed with cold drawn material. As can be seen from the above figure, the SJ-50 camshaft movement shaft is made by dividing the black nut and shaft body. After drilling holes on the black nut, the nut and shaft body are riveted together with a pin to form a whole. The minimum order quantity for SJ50 cams is 5 units with a delivery time of 4-7 days, and the packaging is woven bags or paper boxes.
If you need to purchase SP machine external let-off SJ-70 cam, SJ-50 cam motion shaft, camshaft, let-off accessories, external let-off, GA615 loom accessories, and various shuttle loom cam components, please contact Mr. Yang of our company to discuss cooperation matters!
