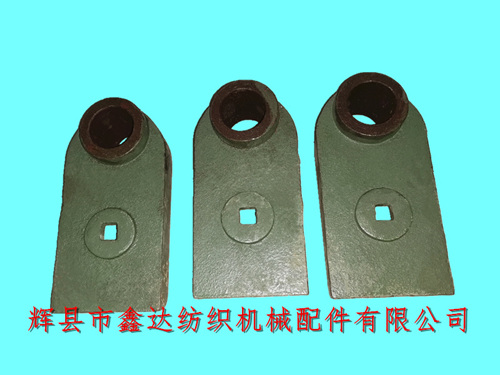

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the iron F2 Side Lever Cap (Single Eye) of 1511 type 44 inch loom. Loom Parts F2 Side Lever Cap (Single Eye),The side plate cap F2 of textile machine accessories is the shuttle throwing part of the loom, and the shuttle throwing part is an important component of the loom. If the adjustment is not accurate, it is easy to cause shuttle rolling, shuttle and other failures, affecting the weaving production. Installation of side plate cap of loom iron casting (F2): install the side plate kit on the rear side of 44 loom, and slightly tighten the nut. If the side plate is not in the middle of the guide frame, it can be corrected by padding paper between the side plate and the side plate cap F2 according to the actual situation.
Type 1511 monocular side plate cap F2 has a length of 176mm, a width of 91mm, a thickness of 57mm, and an inner hole diameter of 38mm. It is made of HT15-33 (gray pig iron) and has no package. There are 5 pieces in each string, with a single weight of 1.25 kg.
Steps for correcting the shuttle throwing force of the loom:
1. Turn the bending shaft f38 of the loom, when the shuttle rotor F11 is downward, press the corresponding side plate to the bottom, slightly loosen the side plate cap nut, and adjust the screw of the side plate support foot F6 or F7 (the distance between the lower edge and the upper part of the loom foundation is 101.6mm);
2. When weaving plain fabric, make the distance between the inner side of the shuttle plate and the inner end of the shuttle box bottom plate equal to 267mm, and then re tighten the side plate cap nut.
If you need to purchase 44 inch loom iron castings F2 side plate cap (monocular), 1511 side plate cap, iron castings, loom accessories, textile machine iron accessories and other products, please contact Mr. Yang of our company for details. We provide more than 1000 kinds of shuttle loom accessories, shuttle loom equipment and other products.
