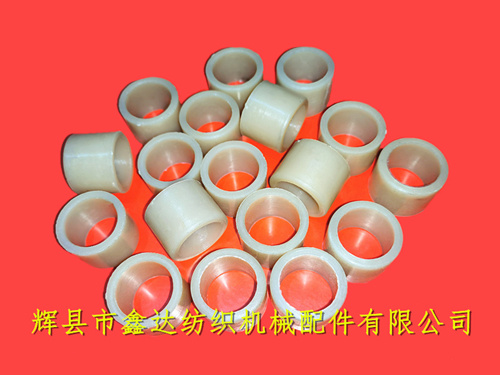

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides general accessories for 3122 nylon loom heald rod bushing. 3122 Nylon Heald Bar Bushing For Looms, The outer diameter of 3122 nylon loom fitting is 26mm, the inner hole diameter is 20mm (bushing wall thickness is 3mm), and the height is 20mm. The heald rod bolt of loom passes through the middle of 3122 nylon bushing. The number of 3122 bushings used in each loom is related to the number of treads used. Single treadle loom Two 3122 bushings are used for each heald bar of the double tread loom.
Textile nylon accessories - 3122 heald bar nylon bushing is not packaged, 100 per string, weighing 1kg. This bushing can be used for 44 inch, 56 inch and 56 inch and 75 inch heald bars of 1511 and 1515 looms. Therefore, 3122 nylon sleeve belongs to the general accessories of shuttle looms (except GA615).
For textile nylon products, the plastic sleeve of shuttle loom is produced and processed with 1010 nylon material. During installation, it is necessary to check that the gap between 3122 bushing and heald rod bolt (A8 or 3102) does not exceed 0.8mm, the horizontal tolerance is 0.20/150mm, and the heald rod bolt can rotate freely and flexibly.
3122 nylon sleeve, also known as "3122 bearing", is a part of the heald bar assembly. Each group of heald bars of plain loom uses 4. The rotation of large radius tread plate opens the heald bar up and down, so the nylon bushing is mainly used to protect the heald bar main body and heald bar bolt.
If textile mills, weaving mills and cotton mills need to purchase textile nylon sleeve a29, loom nylon sleeve a283122 bushing, loom bushing A30 and other products, please contact Mr. Yang of our company for consultation!
